Q: A beverage machine can accept coin in 25c, 10c, and 5c. When the amount is more than 40c, deliver the beverage and charger. How to design the FSM without using adders?

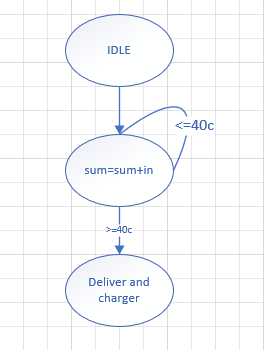

Following diagram uses adder.

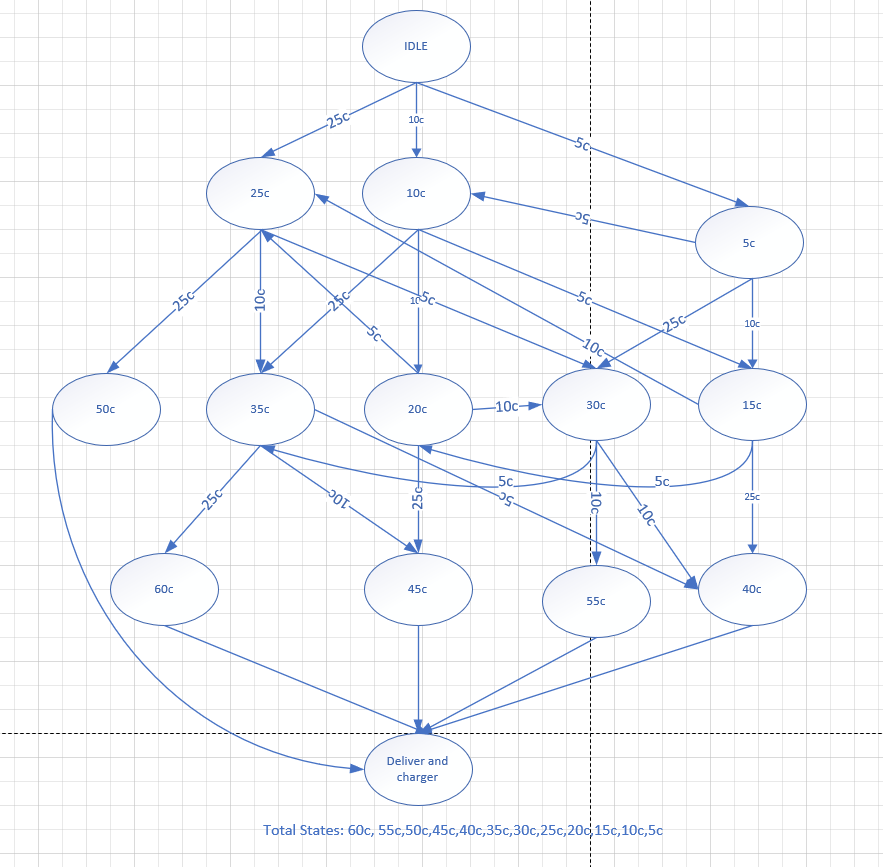

Following does not.
FSM design without using adders
